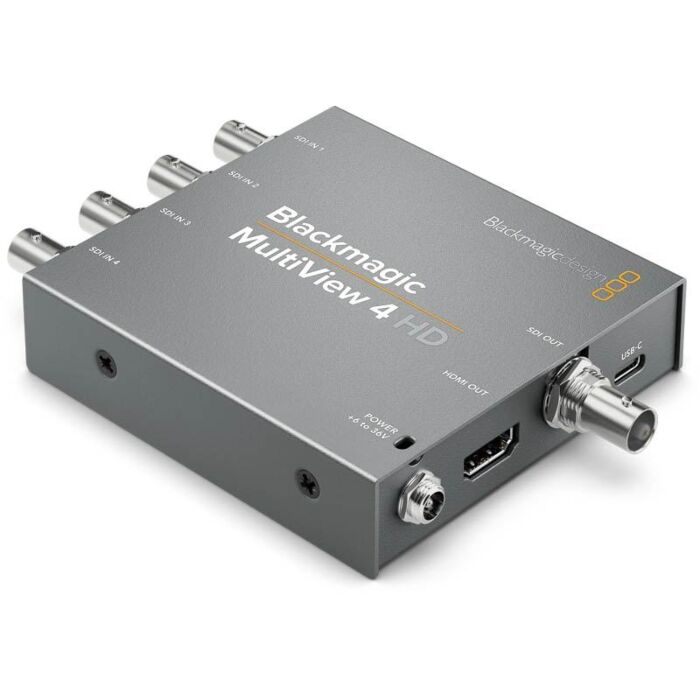

BlackMagic Design BMDHDLMULTIP3G0 MultiView 4 HD

In stock

SKU
HOL313
£202.80
£192.66

Shipping & Delivery:

  • Estimated arrival in approximately 3–10 working days. Click "Add to Cart" to pre-order now.
Description

Monitor up to four different SD and HD sources on the same display at the same time

The MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display! Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more. Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices. Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions.

All Blackmagic MultiView models are designed to be durable and rugged enough for use out in the field or back in the studio, and are built for 24/7 dependability.

Designed to be small, durable and easy to use

MultiView 4 HD features a very small, all metal design that’s extremely durable so it can be used in harsh outdoor broadcast environments or installed behind equipment! All you have to do is connect your sources and it will automatically output them in a 2x2 grid on a single display. MultiView 4 HD features built in switches that can be used to turn labels on and off, add borders, select audio and more. Whether you’re in an outside broadcast truck or on location at a live event, you can combine MultiView 4 HD with an HDMI television and build the world’s most affordable professional multiview solution.

More Information
Short Description
  • Low cost HD multi viewer
  • Multi rate SDI inputs with full frame re-synchronization

Specifications

  • SDI Video Inputs: 4x 10-bit SD-SDI and HD-SDI
  • SDI Video Outputs: 1x HD-SDI
  • SDI Rates: 270Mb, 1.5G, 3G
  • SDI Video Multi View Outputs: 1x 10-bit HD-SDI
  • HDMI Video Multi View Outputs: 1x HDMI type A connector. Output supports EDID of the monitor
  • SDI Reclocking: On all SDI outputs, auto switching between standard definition or high definition
  • Reference Input: None
  • Multi Rate Support: Auto detection of SD or HD
  • Updates: USB 2.0 high speed (480Mb/s) interface
  • Configuration: USB 2.0
