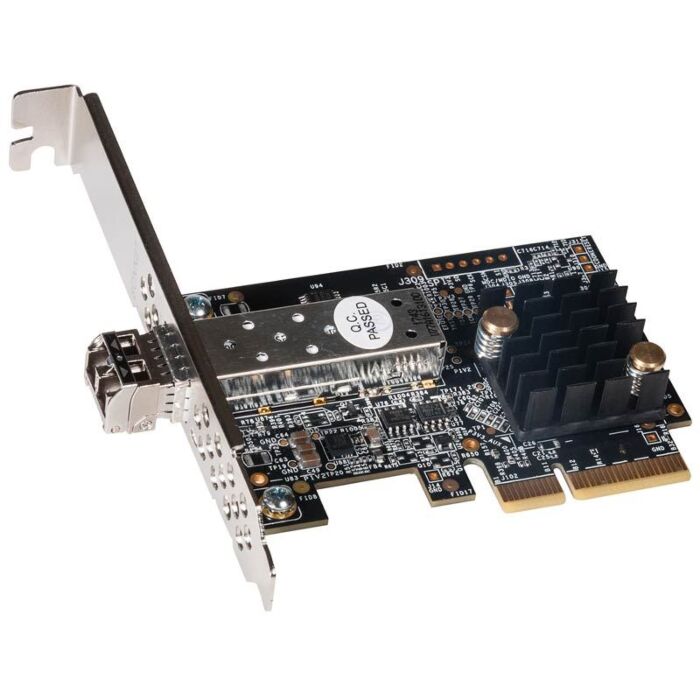

Sonnet Solo10G SFP+ PCIe Card

Blazing-Fast 10GbE Connectivity Over Optical Cables

Made possible by advances in technology—plus cheaper gear—more content than ever is captured and outputted at 4K and higher resolutions. The resulting files are larger than ever. For post-production shared storage workgroups and other bandwidth-intensive workflows, 10 Gigabit Ethernet (10GbE) has become the new data transfer standard.

While very affordable 10GbE switches have helped to significantly reduce the expense of setting up 10GbE infrastructure, the price of adding client connectivity—especially fiber optic connections—has remained a barrier for some. Now, there is an equally affordable 10GbE interface for your desktop and workstation computers—Sonnet’s Solo10G™ SFP+ PCIe® Card, a powerfully simple solution for adding blazing-fast fiber optic 10GbE network connectivity to Mac®, Windows®, and Linux® computers at a price that’s sure to please.

10x the Performance of Gigabit Ethernet

The Solo10G SFP+ PCIe Card includes a 10GBASE-SR (short-range) SFP+ transceiver (the most commonly-used optical transceiver), enabling you to connect your computer to 10GbE infrastructure via LC optical cable (optical cables sold separately) at distances up to 300 meters.

Advanced Feature Support

The Solo10G SFP+ PCIe Card’s high throughput performance and low host-CPU utilization are attained through functions such as flow control, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading. These processes enable your computer to perform better while large files transfers or high I/O operations take place.

Additional SFP+ Transceiver Choices

Sonnet includes a short-range multi-mode fiber SFP+ module (up to 300 meters), part number G10E-SFP-SR, included with the Solo10G card. Sonnet also offers a long-range single-mode fiber module (up to 10 kilometers), part number G10E-SFP-LR (sold separately); and a 10GBASE-T copper module (up to 30 meters using CAT 6A cables), part number G10E-SFP-T (sold separately). Alternatively, you can use cost-effective direct-attach Twinax copper cables up to 10 meters long⁽³⁾.

Simple Setup

How simple? Install the Solo10G SFP+ PCIe Card in your computer or Thunderbolt expansion system⁽²⁾, connect to the network switch or directly to 10GbE-enabled storage, and configure the card’s settings through your computer’s operating system network device configuration tools.

Includes Two Mounting Brackets

The Solo10G SFP+ PCIe Card is packaged with both full-height and low-profile mounting brackets, enabling installation of the card into any PCIe slot.

Optimized for Thunderbolt

Got a Thunderbolt connection, but no PCIe slot? Solo10G SFP+ PCIe Card is ideal for use in one of Sonnet’s Echo Express™ and xMac™ Thunderbolt-to-PCIe card multi-slot expansion systems—the combo enables you to add an ultra-fast 10GbE network connection to any Mac with Thunderbolt 2 or Thunderbolt 3 ports, or Windows PC with Thunderbolt 3 ports.

Perfect for the Extra Slot in Your Multi-Slot Thunderbolt Chassis

Have a multi-slot Thunderbolt 2 or Thunderbolt 3 to PCIe card expansion chassis with an open slot? Installing a Solo10G SFP+ PCIe Card is an excellent way to inexpensively add 10GbE connectivity to your computer.
